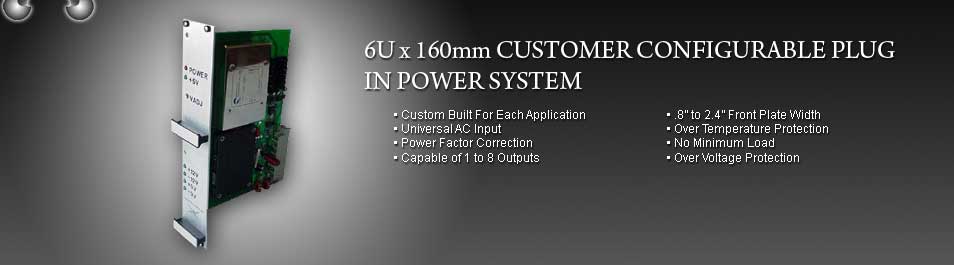

6U x 160mm Power Blade Series
Features & Benefits
- Custom built for each application
- Universal AC Input
- Power Factor Correction
- Capable of 1 to 8 Outputs
- Output Voltages from 1.8V – 48VDC
- .8" to 2.4" front panel width
- Over Temperature Protection
- No Minimum Load
- Over Voltage Protection
- Vertical airflow design
| Item | Unit of Measure | Unit Price |
| AC Input Voltage | VAC | 85-264, 47-63Hz |
| DC Input Voltage | VDC | 12, 24 , 48 , 120 – 370VDC |
| Input Current | Amps | Output Wattage / Output Voltage x 1.25 = Input Current |
| Inrush Current | Amps | 0-50 Amps |
| Efficiency | % | AC – DC 75 % Typical / DC – DC 85% Typical |
| Power Factor Correction | Standard on all models | |
| Output Power | Watts | 250-1200 Watts Depending on Customer Configuration |
| Output Load Regulation | % |
1% Standard and <3% maximum |
| Output Line Regulation | % | <1% |
| Ripple and Noise | Pk - Pk | 2% pk - pk |
| Hold Up Time | mS | >16 mS at 80% Load |
| Remote Sense | Available on Outputs over 100 Watts | |
| Operating Temperature | ºC | -40 to 100ºC Standard |
| Thermal Protection | Over Temperature Shut down on each Output | |
| Storage Temperature | ºC | -40 to 100ºC all Modules |
| Humidity | % | 5-95 % Non-Condensing |
| Altitude | Ft | 10,000 Ft |
| Over Voltage Protection | % | <150% of Rated Output |
