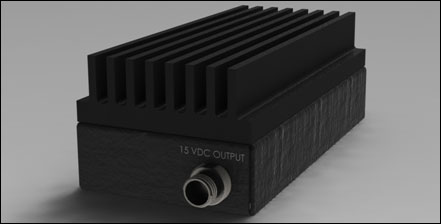

50 Watt Power System (MIL-VIC-50-15)
Our overall concept consists of an aluminum case with thermal dispersion via a heat sink on the top of the unit. This design will meet all temperature requirements given by described in the specifications. This unit will be designed as a ruggedized military power system. The system will be designed with the regulated output of 15 VDC and 6 amps available. The input range will be 9 to 36VDC for start up. This power supply will be designed with weight and size in mind.
The MIL-VIC Power Systems have been designed to comply with all of the radiated emissions, susceptibility and conductive emissions requirement of the applicable sections of MIL-STD-461E. These techniques have been used successfully by AJPS to comply with these standards many times in the past. The following is a list of methods used for controlling emissions:
- Metal Chassis with gaskets on all non sealed interfaces
- EMI Filters on all input and output power lines
- Internal circuitry shielded and isolated
- Ground Planes used for noise isolation
- Connectors area isolation from Conversion Area
- Shielding will be required on Power Cables
The unit will be designed to meet MIL-STD-461E all testing will be the responsibility of the customer.
We Can Customize to Suit Your Need
Contact us to discuss a solution for you or
email us directly to requst a quote.
Data Specifications
| Item | Unit of Measure | |
| Input Voltage | VDC | 9-36 VDC |
| Output Voltage | VDC | 6 Amps @ 15 VDC |
| Operating Temperature | ºC | -40C to 70ºC |
| Storage Temperature | ºC | -40C to 100ºC |
| Overload Protection | % | 110 to 180% of full load |
| Total Output Power | Watts | 50 Watts |
| Efficiency | % | >84% |
| Load Regulation | % | < +/- 1% |
| Line Regulation | % | 0.2% for 10% Line Change |
| Ripple | % | 2% of Output Voltage |
| Current Limit | Over current & Short Circuit Protection | |
| Physical Dimensions | Inches | 2.8” front x 5.5” Side x 2” tall |
| Connectors | Male Glenair 801-023-07ZNU5-3PA Female Glenair 801-023-07ZNU5-3SA |
|
| Cooling | Conduction Heat Sink Cooled | |
| Weight | LBS | Est. 2 LBS |
| Over Voltage Protection | VDC | 37.5 VDC |
| Set Point Accuracy | % | < +/- 1% |
| Temerpature Regulation | ºC | .005% / ºC |
Environments
| Item | Unit of Measure | |
| Alltitude | Ft | 10,000Ft Operating 40,000 Non Operating |
| Temperature (Operating & Non-Operating) | ºC | -40C to +70C; -40C to +100C |
| Humidity | MIL-STD-810* | |
| Fungus | MIL-STD-810F Method 508* | |
| Salt Fog | MIL-STD-810F Method 510* | |
| Sand, Dust, and Volcanic Ash | MIL-STD-810F* | |
| Vibration | MIL-STD-810F* / MIL-STD-167* | |
| Functional Shock | MIL-STD-810F* / MIL-S-901* | |
| EMI/EMC | MIL-STD-461C/D*;RE02/102* Shielded Leads |
* Compliance via analysis or similarity (Power Supply is designed to meet MIL-Standards, testing is optional but will cost more)
